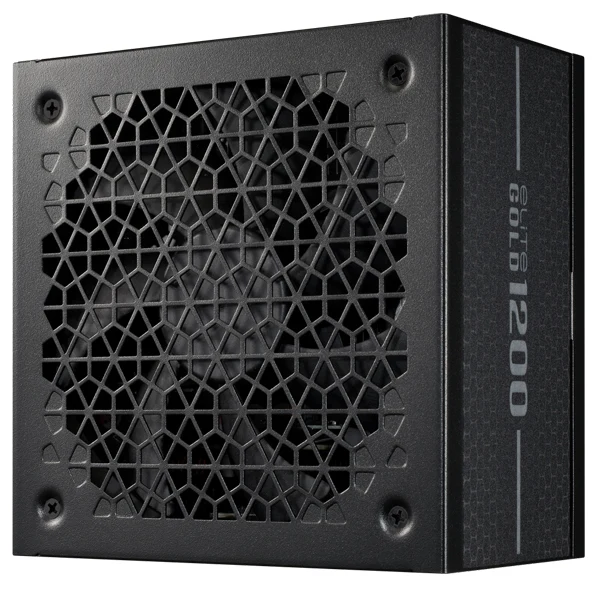

Cooler Master Elite Gold 1200W ATX 12V V3.1 80Plus Gold Certified Fully Modular Power Supply with Dual EPS Connectors, Supports PCIe Gen 5.1 Standards, Active PFC And 135mm FDB Silent Fan – Black Colour

Features:
-135mm quiet FDB cooling fan
-Single +12V Rail and Active PFC
-High Temperature Resilience up to 40°C
-Fully Modular Design with Flat Black Cables
-Compact Design Form Factor at 150mm or less
-Compatible with ATX 3.1 & PCIe Gen 5.1 standards
-Easy installation across wide range of case up to 150mm or less
-80 Plus Gold Certified achieves over 90% efficiency at typical loads

Specifications:
-Product Name: Elite Gold 1200
-Product Number: MPW-C001-AFAG-BEU
-ATX Version: ATX 12V Ver. 3.1
-PFC: Active PFC
-Input Voltage: 100-240V
-Input Current: 7.5~15A
-Input Frequency: 50-60Hz
-Dimensions: (L)150 x (W)150 x (H)86mm
-Fan Size: 135mm
-Fan Bearing: FDB
-Efficiency: >90% @ Typical Load
-80 Plus Rating: 80 Plus Gold
-ErP 2014 Lot 3: Yes
-Operating Temperature: 0~40C
-Power Good Signal: 100-150ms
-Hold Up Time: >16ms @ 80% Load
-MTBF: >100,000 hours @ 25C ambient
-Protections: UVP/OVP/OPP/OTP/SCP
-Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH

Connectors:
-1x (600mm) ATX 24 Pin x1
-2x (700mm) EPS 4+4 Pin x2
-3x (500+100+100mm) SATA x9
-1x (500+100+100mm) Peripheral 4 Pin x3
-3x (550+120mm) PCI-e 6+2 Pin x6
-1x (600mm) 12+4 Pin x1

-Weight: 3300g
-Dimensions: (L)33 x (W)21 x (H)13.2cm

What’s in the box:
-1x Cooler Master Elite Gold 1200W Power Supply


-135mm quiet FDB cooling fan
-Single +12V Rail and Active PFC
-High Temperature Resilience up to 40°C
-Fully Modular Design with Flat Black Cables
-Compact Design Form Factor at 150mm or less
-Compatible with ATX 3.1 & PCIe Gen 5.1 standards
-Easy installation across wide range of case up to 150mm or less
-80 Plus Gold Certified achieves over 90% efficiency at typical loads
